Butterfly Valves

butterfly valves have a disc or vane mounted on a central shaft. The disc is positioned in the center of the pipe and can be rotated to control the flow of air or gas.

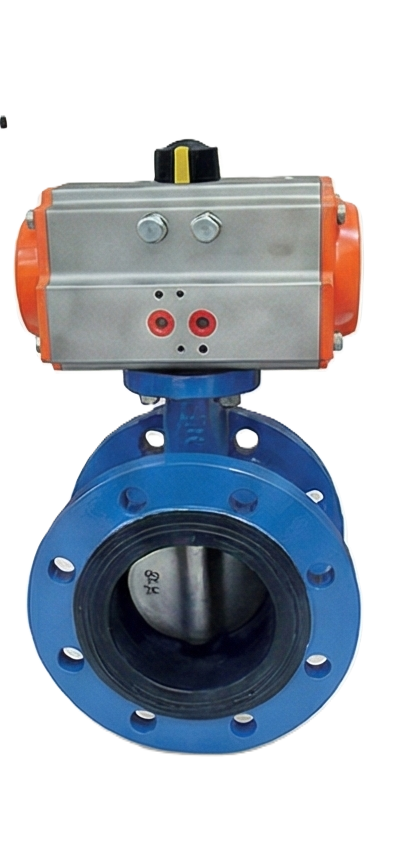

butterfly valves are devices used in pneumatic systems to control the flow of air or other gases by manipulating a disc (or "butterfly") within the valve body. These valves are commonly employed in various industrial applications where automation, quick response times, and precise control of airflow are essential.

butterfly valves come in wafer and lug designs. Wafer valves are sandwiched between two flanges, while lug valves have threaded inserts to facilitate easy installation between flanges.

Specifications:

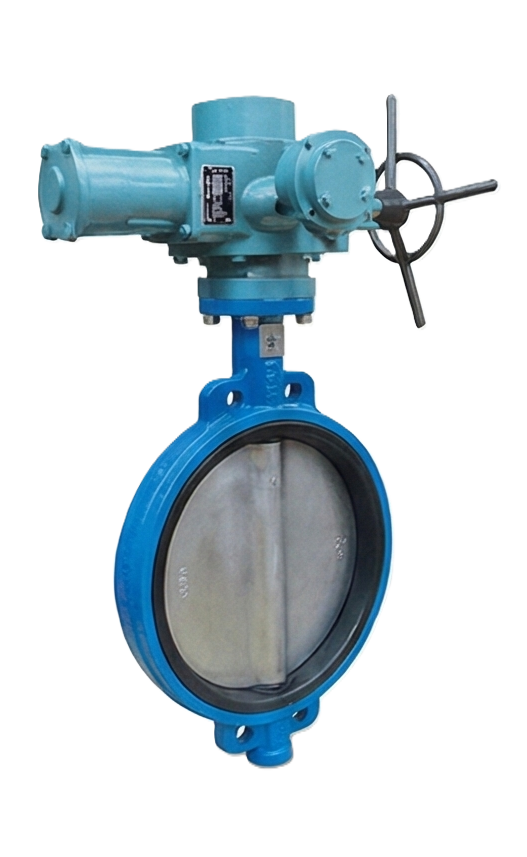

Model	FMCI - ELBF
Electrical Actuator Material	Aluminum Ally / Nylon
System Design	Gear Motor
Casting Protection	IP 67
Working Temp	Upto 60 C
Valve Size	40 NB to 600 NB
Body	CI (IS 210 Gr. FG 200/220)
Body Type	Short wafer (Sandwiched Between Flanges)
Seat Type	Intergrally Moulded with the body
Pressure Rating	PN 10 (max.) / PN 16 Available on Req. Oper. Temp. rage: -25 C to 130 C (depending on MOC)
